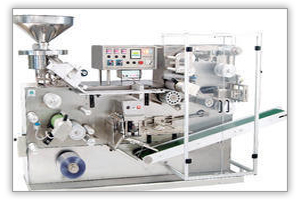

Blister Packaging Machines
PRODUCT IMAGES :
PRODUCT OVERVIEW :
Composite as semblage, The structure & features are similar with DPP 260. It is suitable for comparatively big items of special shapes such as large condensed pills, injections, syrups, food, electricals and medical appliances in AL/PVC or Paper/PVC packing. Automatic feeding device and ampoule printing device can be equipped for blister bubble or urn type (with small opening but spacious inside to hold the item for shock resistance) if injections, ampoule or syrups are packed.The working platform can be extended about 1 meter for items of special shapes that need to be fed manually..

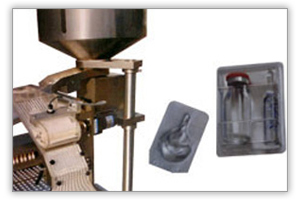

Feeder for Round Tablets AL/AL (AL/PVC) :
Composite as semblage, The structure & features are similar with DPP 260. It is suitable for comparatively big items of special shapes such as large condensed pills, injections, syrups, food, electricals and medical appliances in AL/PVC or Paper/PVC packing. Automatic feeding device and ampoule printing device can be equipped for blister bubble or urn type (with small opening but spacious inside to hold the item for shock resistance) if injections, ampoule or syrups are packed.
The working platform can be extended about 1 meter for items of special shapes that need to be fed manually
MAIN TECHNICAL SPECIFICATION :
| Capacity | 15-42 times/min 2ml ampoule 10 pieces/sheet 2 sheet/time 30000 pieces/hour |
| Forming area and depth | < 340 x 170 x 33mm |
| Width of Medicinal PVC | |
| Thickness | 0.2-0.6mm |
| Range of Stroke | < 180 mm |
| Total Power | 9.6 KW |
| Air Compressor | > 0.4M3/ min (Arranged by user) |
| Dimensions ( L x W x H ) | 4700 X 840 X 1700mm |
| Weight of Printer | 2300 Kg |
